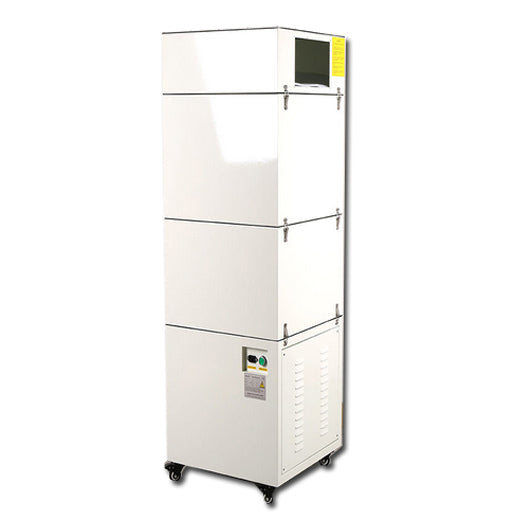

Air Filtration System PA1500FS by Redsail

Suitable for fume filtration and dust collection for CO2 Laser cutting / engraving - non-metal. Four stage filtration and purification is designed to ensure filtration of harmful material of the fumes.

Features:-

• Primary filter, Medium Efficiency Filter, Main HEPA filter & Gas filter can be replaced individually to extend filter’s life and reduce filter replacement cost
  • Layer 1 (PA1500-01) G3 Primary Filter
    • To remove large and heavy particles / smoke / dust (>=5Micron)

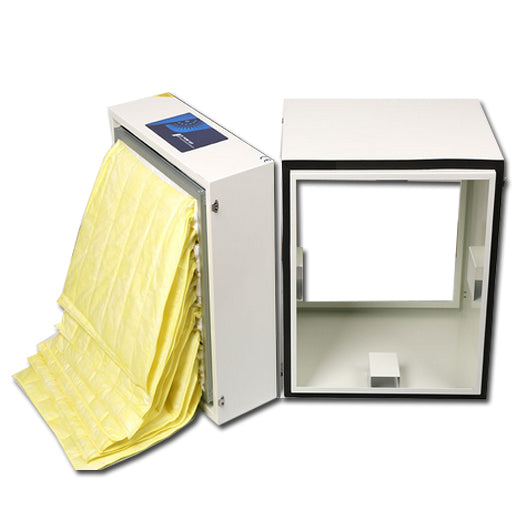

  • Layer 2 (PA1500-02) F8 Medium Efficiency Bag Filter
    • To remove large particles / smoke / dust (>=1Micron)
  • Layer 3 (PA1500-3) H13 Class HEPA Filter
    • To remove small particles (>=0.01Micron) and smoke.
  • Layer 4 (PA1500-04) Activated Carbon Filter
    • To absorb smells and toxic gas (>99.7%) (Oxidant & Active Carbon)
• Metal framework on moveable castors.
• Multi-stage dust filtration enables emissions directly into the room.

• Fresh Air outlet: 150mm (window shades)
• Blower
  • Running Period: More than 10,000hours
  • Max. Air Flow: 1500m3/h
  • Input Capacity: 1100W
  • Air Pressure: 2300PA
