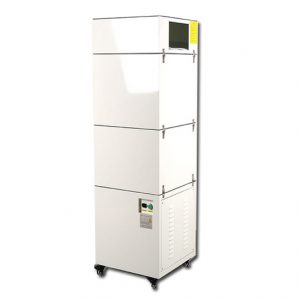

Air Filtration System / Fume Extractor PA1500FS by Redsail

RedsailSKU: 8601291

Price:
Sale price$4,295.00
Dealers

Status

Available

Description

Suitable for fume filtration and dust collection for CO2 Laser cutting / engraving - non-metal. Four stage filtration and purification is designed to ensure filtration of harmful material of the fumes.

Features:-

  • Primary filter, Medium Efficiency Filter, Main HEPA filter & Gas filter can be replaced individually to extend filter's life and reduce filter replacement cost
    • Layer 1 (PA1500-01) G3 Primary Filter
      • To remove large and heavy particles / smoke / dust (>=5Micron)

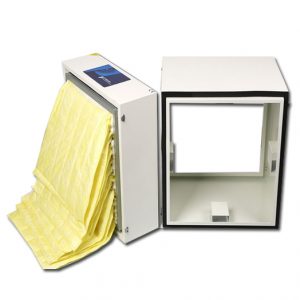

    • Layer 2 (PA1500-02) F8 Medium Efficiency Bag Filter
      • To remove large particles / smoke / dust (>=1Micron)
    • Layer 3 (PA1500-3) H13 Class HEPA Filter
      • To remove small particles (>=0.01Micron) and smoke.
    • Layer 4 (PA1500-04) Activated Carbon Filter
      • To absorb smells and toxic gas (>99.7%) (Oxidant & Active Carbon)
  • Metal framework on moveable castors.
  • Multi-stage dust filtration enables emissions directly into the room.
Specification:-
  • Fresh Air outlet: 150mm (window shades)
  • Blower
    • Running Period: More than 10,000hours
    • Max. Air Flow: 1500m3/h
    • Input Capacity: 1100W
    • Air Pressure: 2300PA

Additional Information

Model
Type
Fume Extractor
SKU
8601291
Part Number
PA1500FS
Brand
Redsail
Technical - Main
Noise Level (Std Pressure)
70dB
Dimensions
Product Length
550 mm
Product Width
550 mm
Product Height
1450 mm
Product Weight (Net Weight)
140 kg
Safety
Dust Port
150mm
Workshop (Site) Info
Electrical Connection
Lead & Plug
Packaging + Shipping
Shipping Length
630 mm
Shipping Width
630 mm
Shipping Height
1660 mm
Shipping Weight (Gross)
1.48 kg
